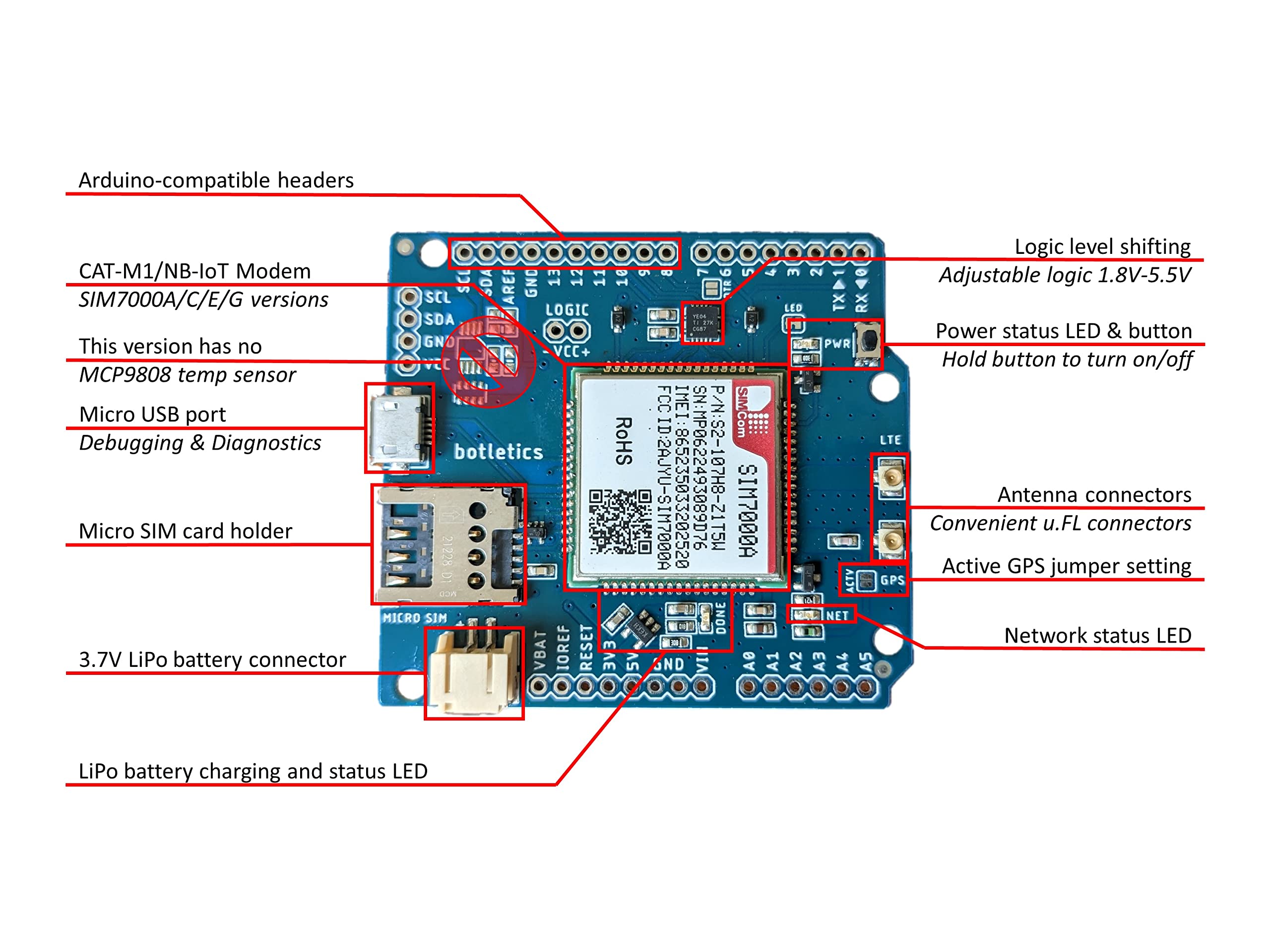

This Powerful Cellular Shield For Arduino Supports The Lte Cat-M And Nb-Iot Technology As Well As Multi-Gnss Positioning. Its Ultra-Low Power Consumption Is Perfect For Battery- Or Solar-Powered Iot Devices And It'S Compatible With Almost Any Microcontroller And Development Platform. * Plug-In Compatible With Arduino Uno/Mega/Leonardo And Easy Wiring For Any 1.8-5V Microcontroller Like Esp8266, Esp32, And Raspberry Pi If Wired Externally * Wiring Documentation And Arduino Code Examples For Avr, Atsamd21, Esp8266, And Esp32 * Lte Cat-M1 And Nb-Iot Support. Sim7000C, Sim7000E, And Sim7000G Versions Additionally Support 2G (Gsm/Gprs) And 2.5G (Edge) * Uplink Speed Up To 375Kbps, Downlink Up To 300Kbps * Several Shield Versions For Different Regions Of The Globe * Ultra Low Power (7.4Ua In Lowest State With A 3.7V Lipo Battery) * On-Board 3.7V Lipo Battery Charging * Supports Sms, Tcp/Ip, Ppp, And Ftp/Http/Ssl * Integrated Multi-Gnss (Gps, Glonass) With 2.5 Meter Accuracy * Built-In Electronic File System (Efs) For Saving Data * Micro Usb For At Commands And Diagnostics * Extra I2C Header For Convenience * Sim7000 Module Power And Network Status Leds * Convenient U.Fl Antenna Connectors Additional Notes: * Full Product Documentation And Example Code Found On Github: Https://Github.Com/Botletics/Sim7000-Lte-Shield * How To Get Network Connection: Https://Github.Com/Botletics/Sim7000-Lte-Shield/Wiki/Connecting-To-Network * This Kit Does Not Include A 3.7V Lipo Battery Or Sim Card, Which Are Required For Proper Operation * Due To Chip Shortage, This Version Does Not Currently Have The On-Board Mcp9808 Temperature Sensor * Sim Card Must Support Lte Cat-M Or Nb-Iot! The Hologram.Io Sim Card Works Great In The Usa * Stacking Female Headers Require Basic Soldering
