New Pilot Unloader Valve For Air Compressor 1/4'' Fpt 140 175 Psi
$29.32
Regular price
$41.89
-30%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

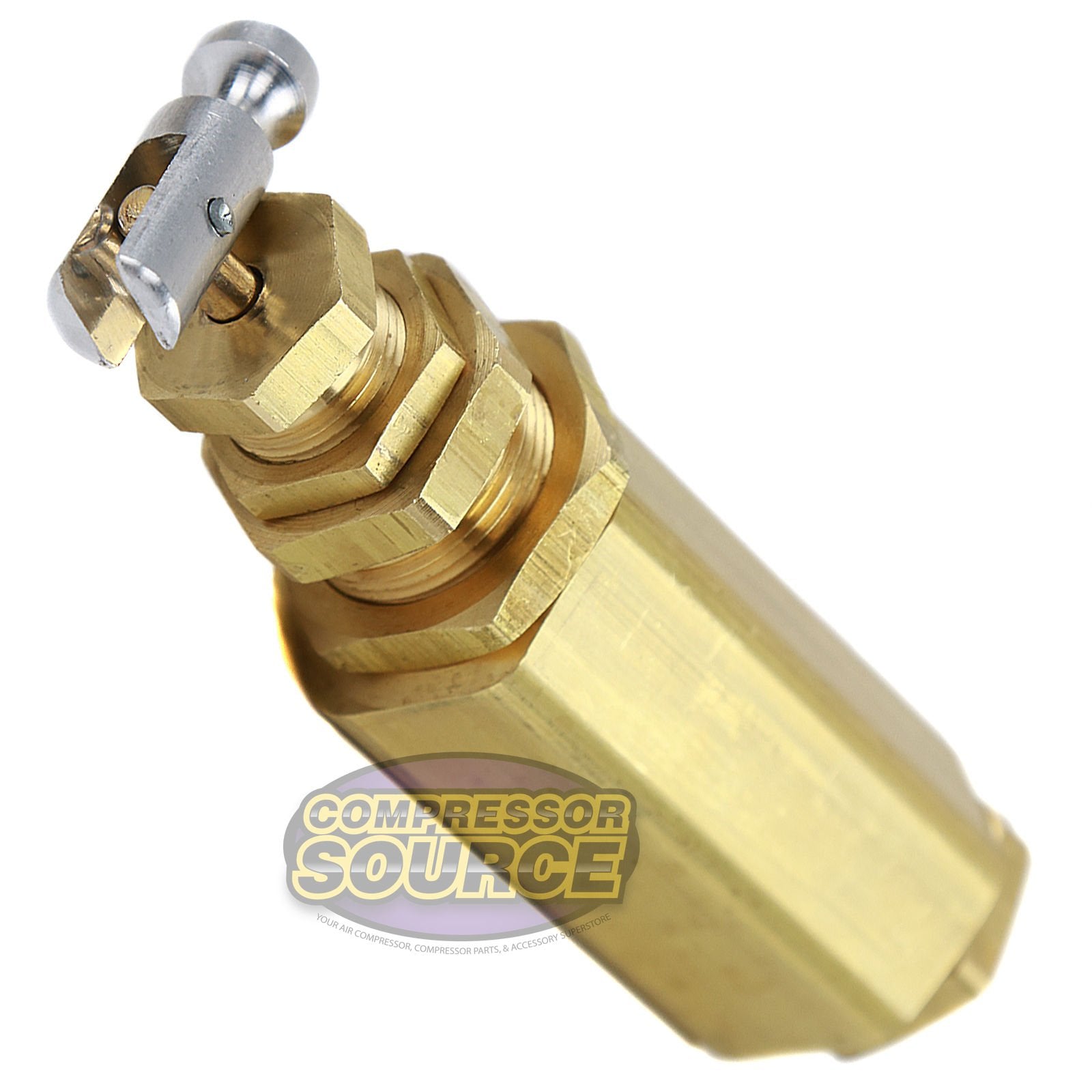

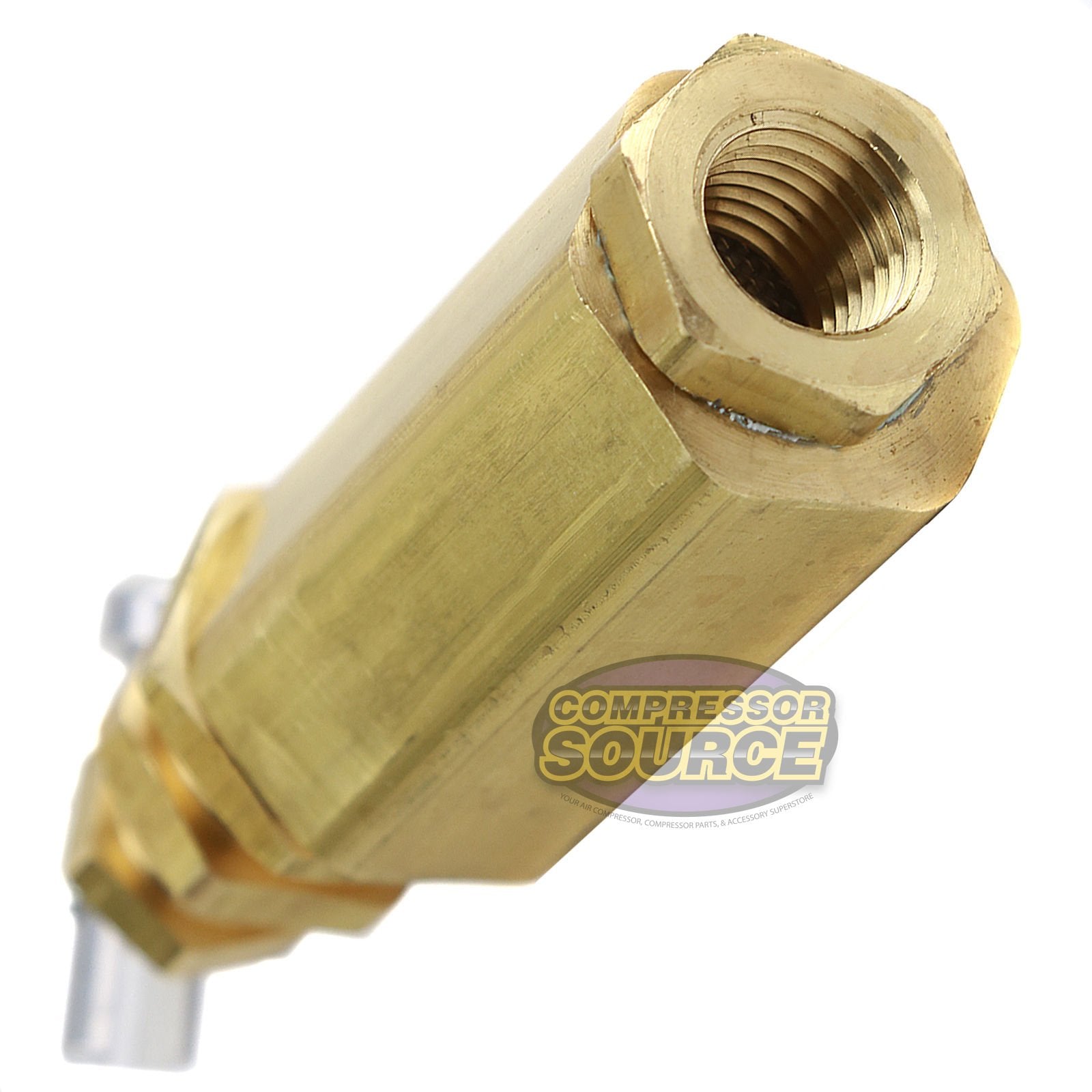

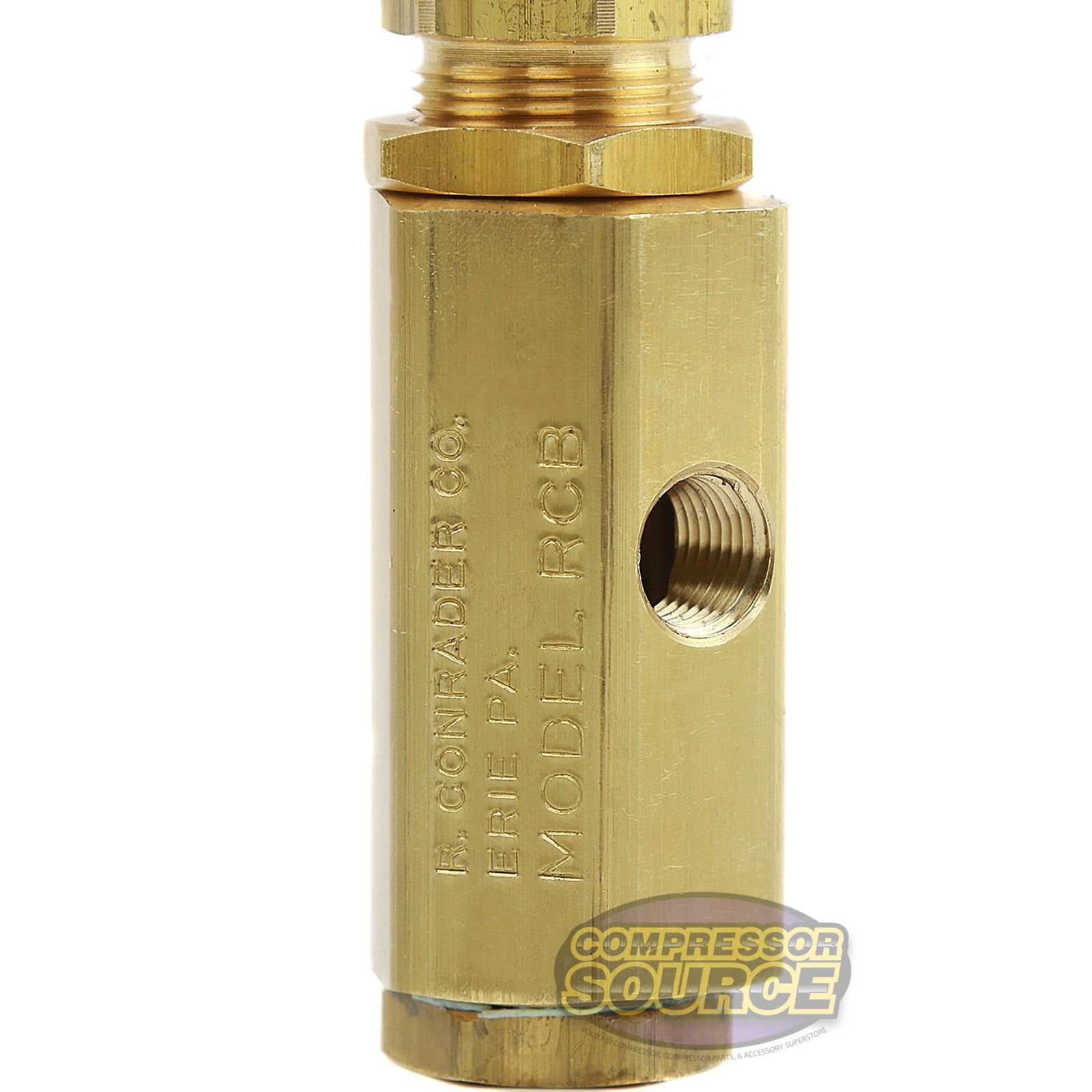

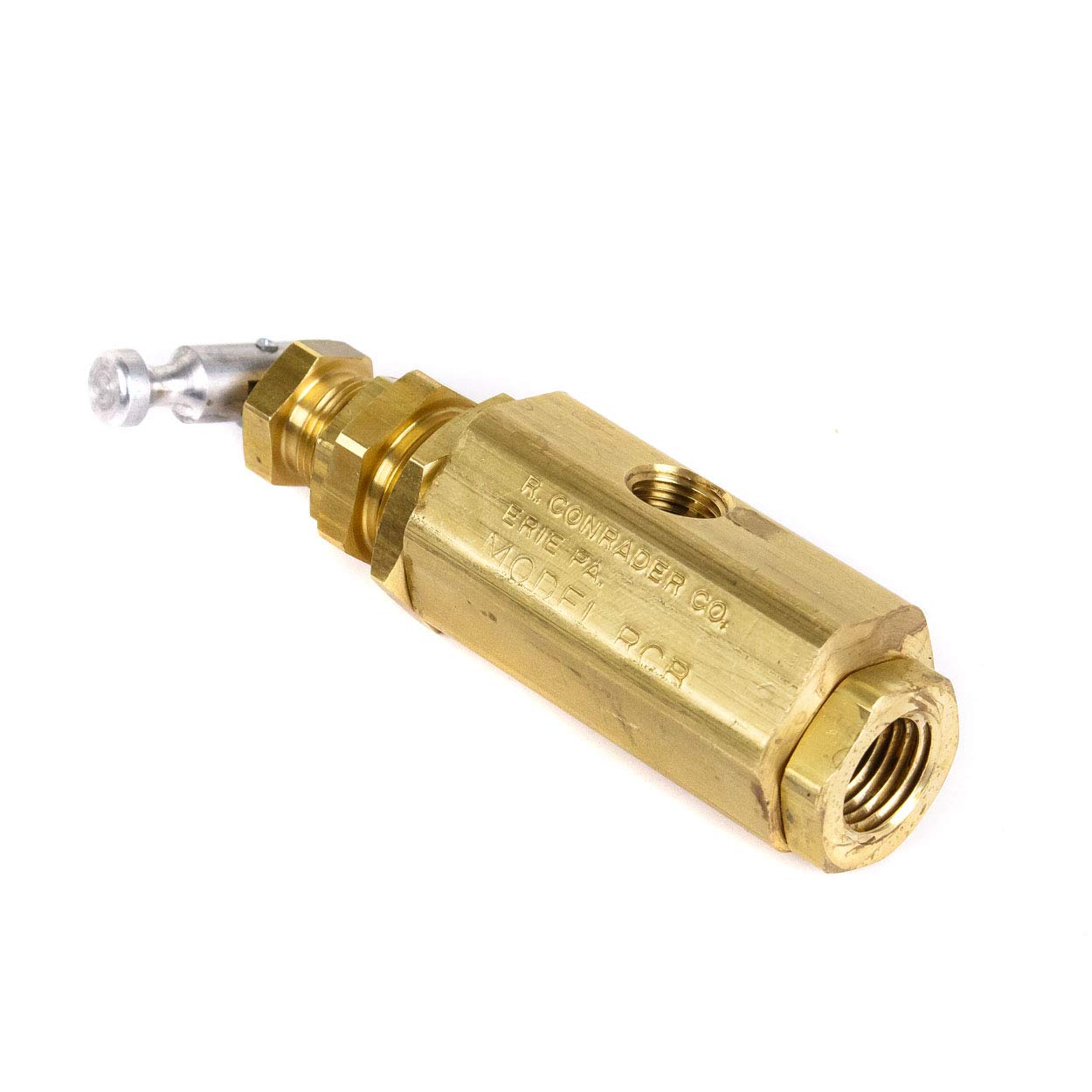

This Listing Is For A New Air Compressor Unloader Control Pilot Valve. This Valve Is Just Like Our Other Unloader Pilot Valves With The Male Threads On The Bottom Except This Is A Shorter Version With 1/4'' Female Threads On The Bottom So It Doesn'T Take Up So Much Room In Cramped Spaces. This Valves Is The Same Size In Diameter But The Height Is 3 1/8'' Inches Which Is About An Inch Shorter Than The Other Unloader Valves. The Valve Is Used To Operate A Compressed Air System At A Constant Run With A Preset Pressure Operating Range To Actuate Throttle Controls, Intake Unloaders Or Air Actuated Discharge Valves. The Valves Preset Operating Range Is 145-175 Psi, It Has 1/4'' Female Npt Threads That Would Be Used For Air Hook-Up Or Screwed On To The Compressor Tank And Has 1/8'' Female Npt Threads On The Side Of The Valve As Shown In The Picture Which Is The Port Used To Control A Throttle, Intake Unloaders Or Discharge Valve. Specifications: Operating Pressure: Cut In Pressure 145 Psi And Cut Out Pressure Is 175 Psi Max Operating Temperature: 300 Degrees F Max Operating Pressure: 200 Psi Air Inlet Threads: 1/4'' Female Npt Which Measures About 1/2'' In Diameter Air Outlet Threads: 1/8'' Female Npt Which Measures About 11/32'' In Diameter Also Equipped With Manual Unloader / Control Lever Which Is Located At The Top Of The Valve. If Lifted In Straight Up Position It Opens The Valve And Puts Pressure To The Throttle Control, Head Unloaders Or Discharge Valve. This Valve Is Precision Machined And All Brass Construction With Stainless Steel Mesh Filter On Intake Side Of Valve For A Dirt Free Operation.
