SPECIFICATIONS Brand Name : Freenove
Choice : yes
Condition : New
High-concerned chemical : none
Origin : Mainland China
Type : Kit
semi_Choice : yes

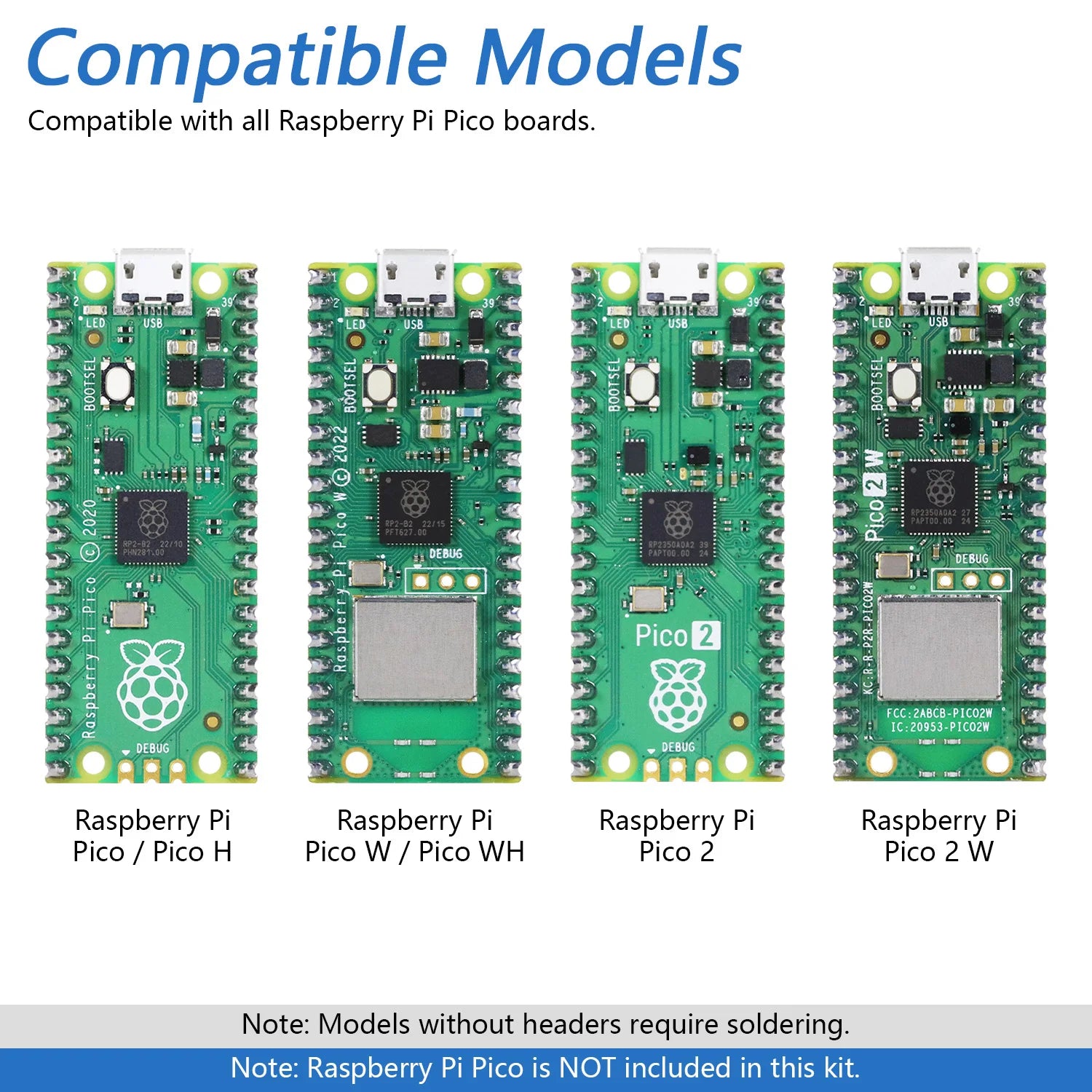

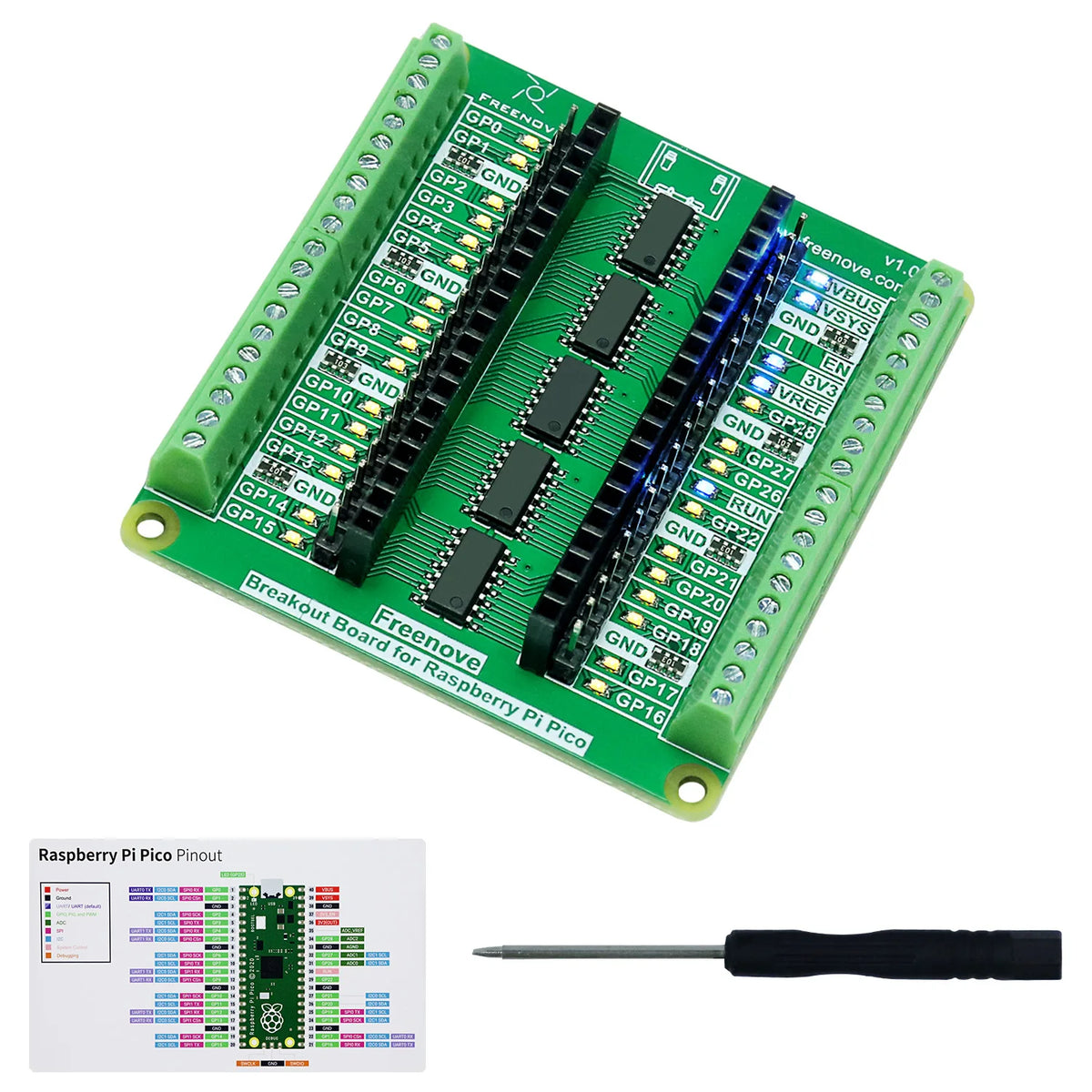

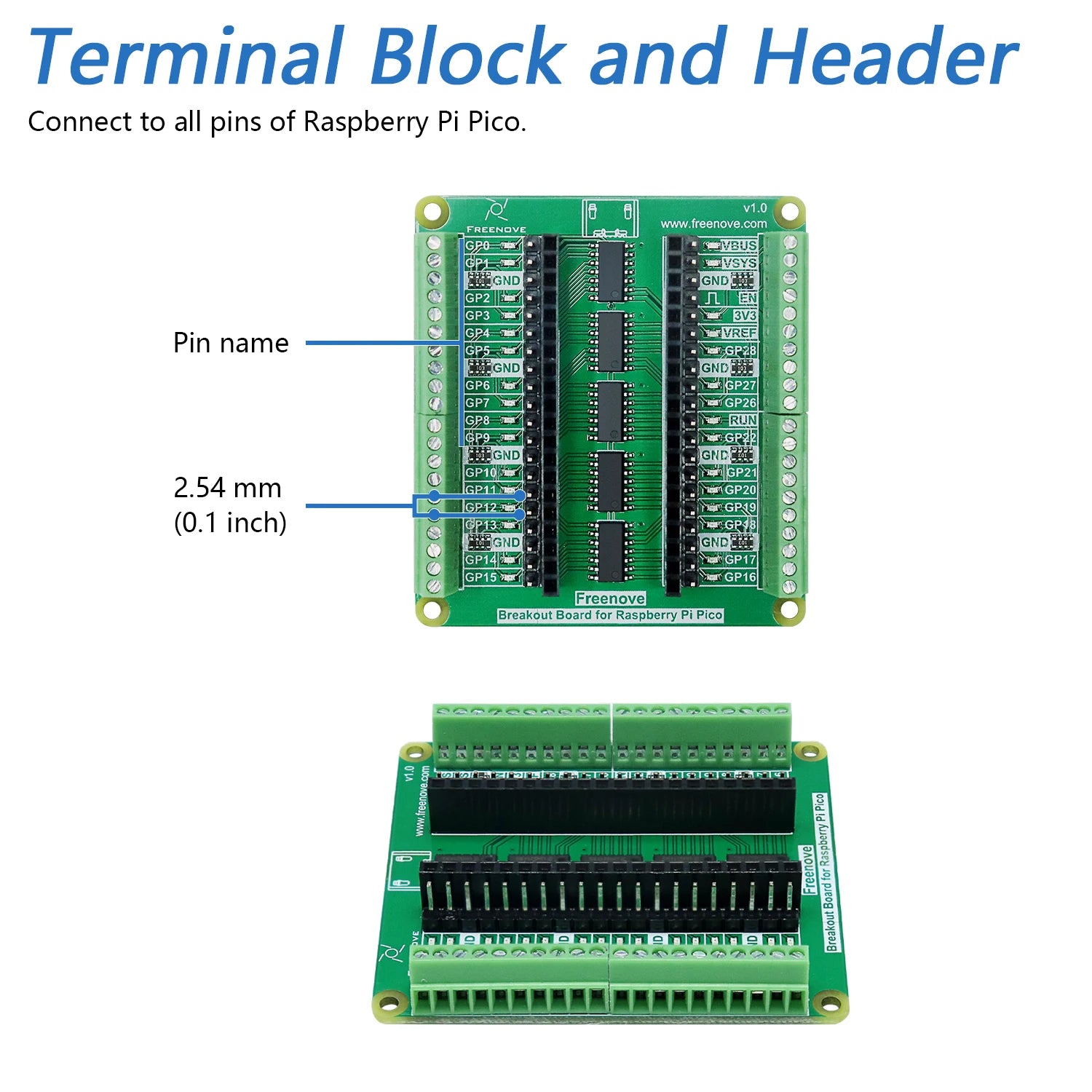

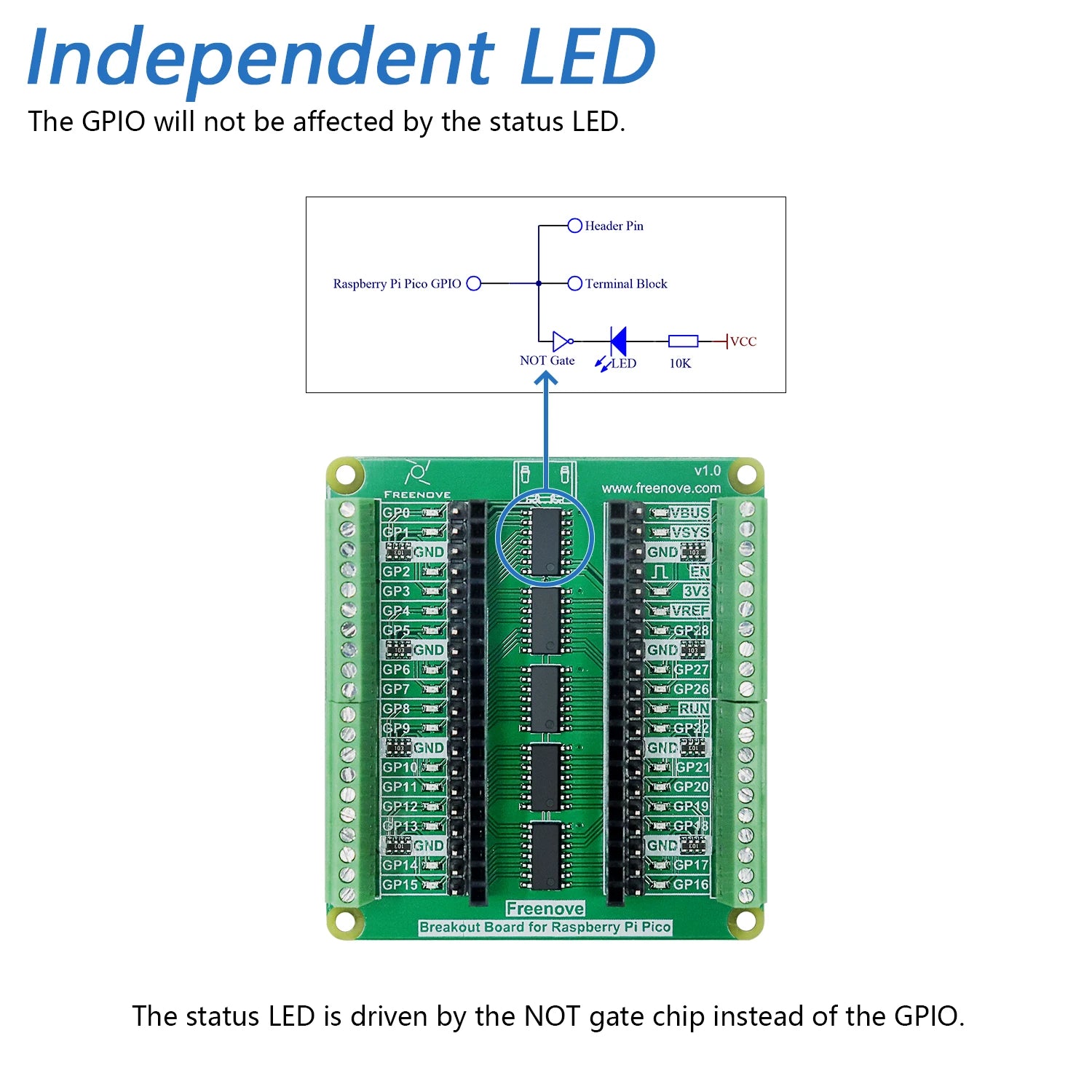

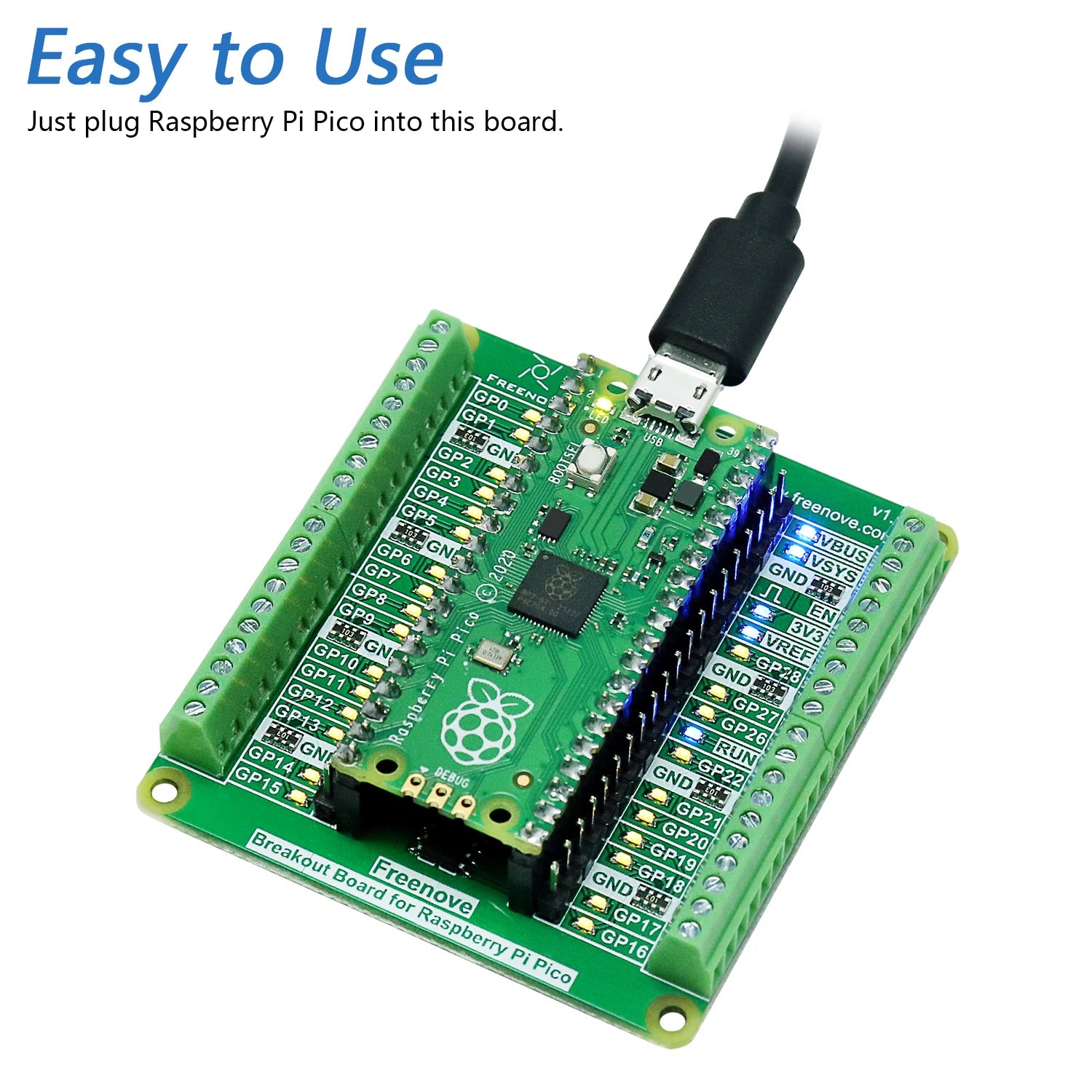

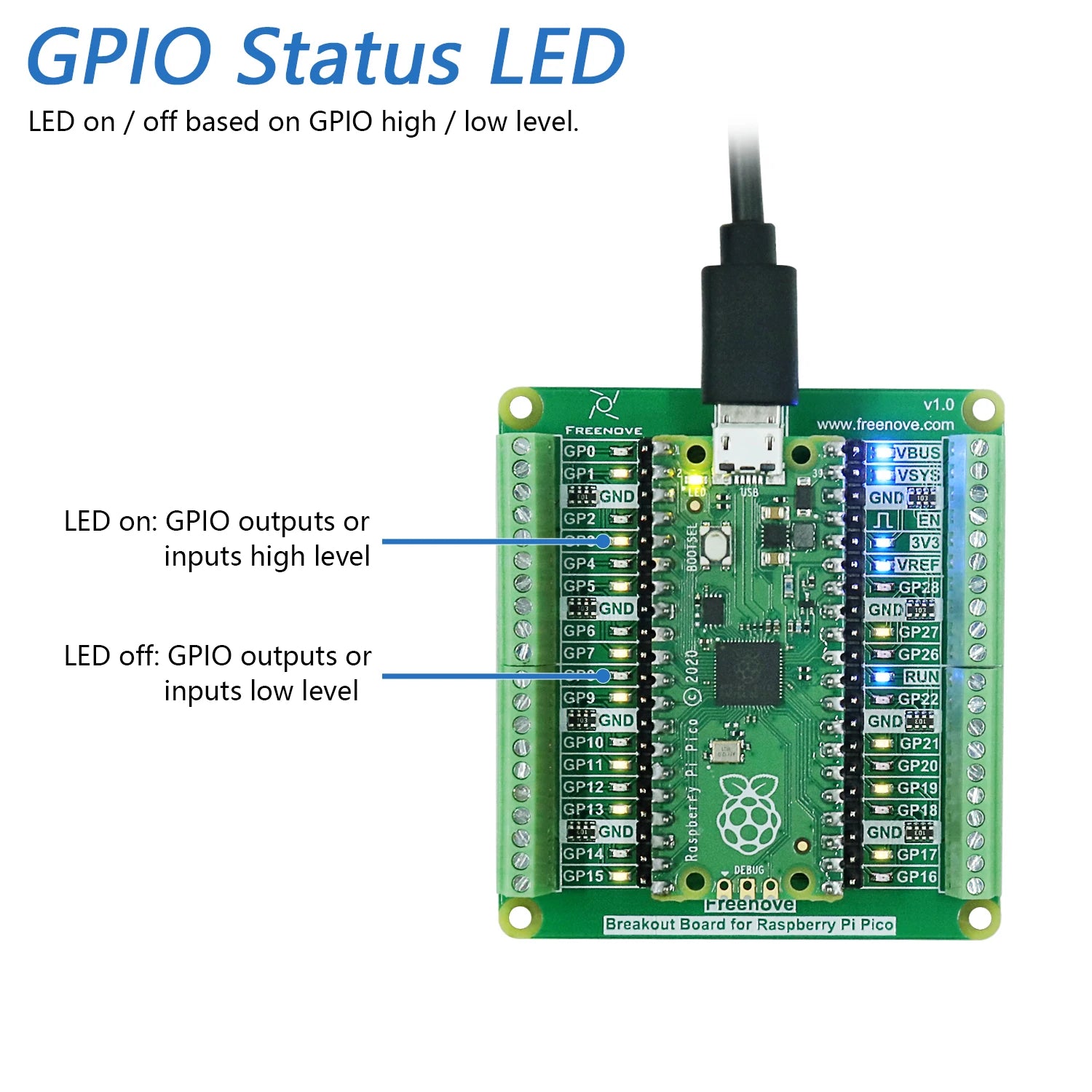

Overview: This breakout board can help you wire and know the status of the GPIO. Just plug your Raspberry Pi Pico into this board to complete the installation. We provide free technical support to help you with any questions and problems.Compatible Models: * Raspberry Pi Pico / Pico H / Pico W / Pico WH / Pico 2 / Pico 2 W Note: NOT included in this kit.Main Features: * Tutorial Can be downloaded (in English) or viewed online (original in English, can be translated into other languages by browsers). Including step-by-step guide to show how to use. The tutorial link can be found on the product box. (No paper tutorial.) http://freenove.com/fnk0081 * GPIO status LED LED on if GPIO outputs / inputs high level, LED off if GPIO outputs / inputs low level. * Independent LED The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected. * Terminal block and header Connect to all pins of the main board, 2.54 mm (0.1 inch) pitch. * GPIO name The name of each pin is printed next to it.Package Includes: 1 x Breakout board 1 x Slotted screwdriver 1 x Pinout card
