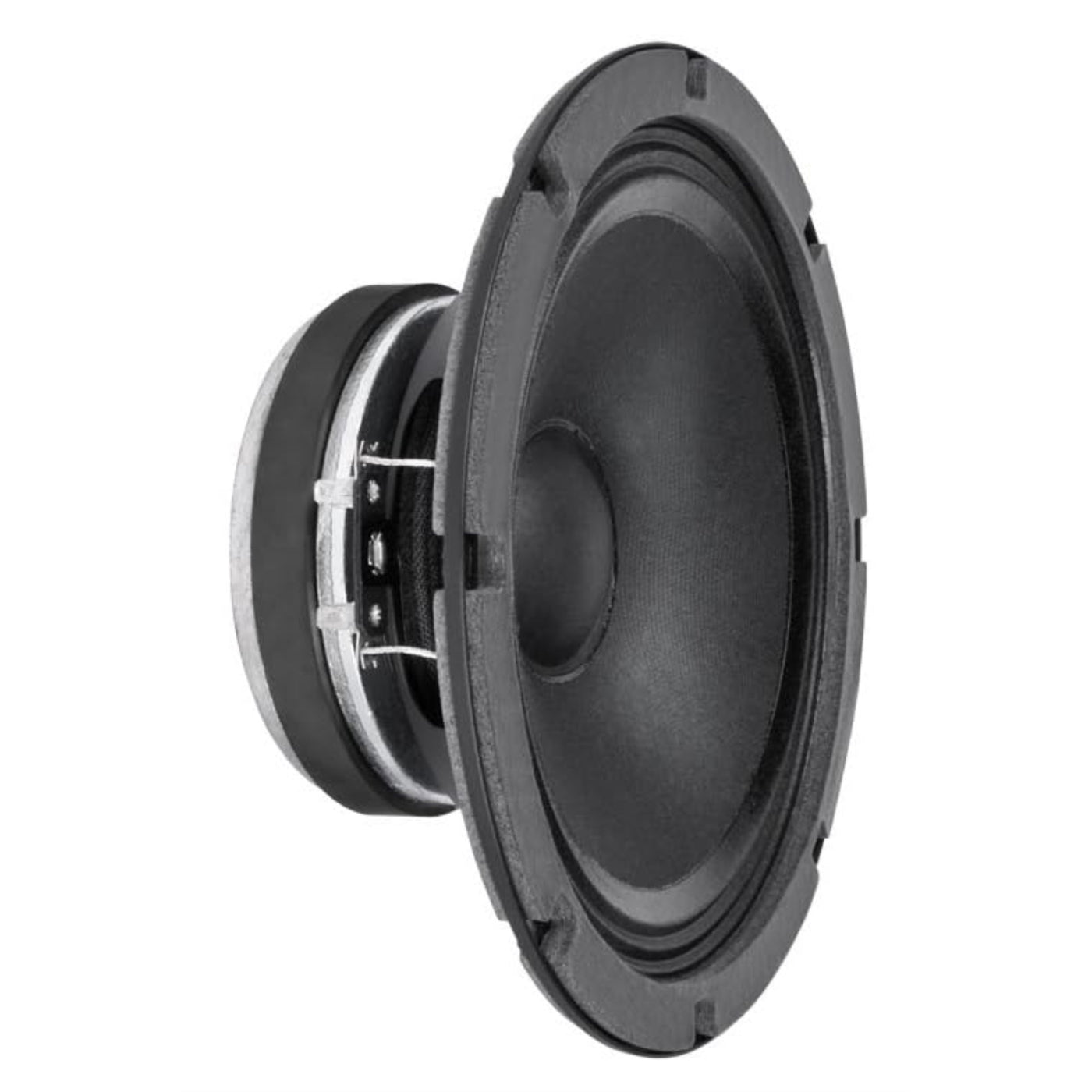

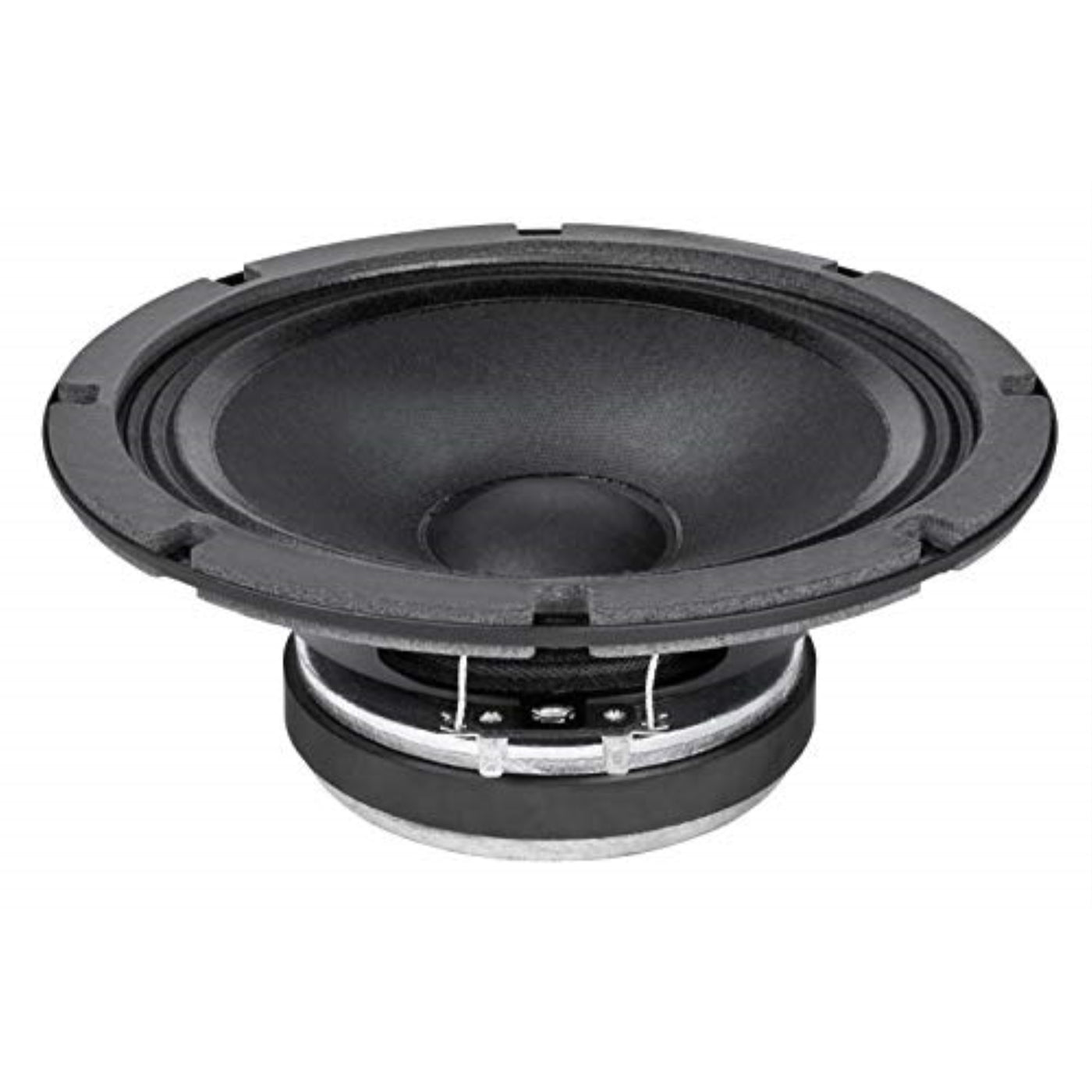

8-in High Power Triple Roll Surround and Treated Polycotton Cone 4-Ohms
$103.70
Regular price
$148.14
-29%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Nominal Diameter 200 mm (8 in). Overall Diameter 209.2 mm (8.24 in). Bolt Circle Diameter 196.9 mm (7.75 in). Baffle Cutout Diameter 178 mm (7.01 in). Depth 89 mm (3.50 in). Flange and Gasket Thickness 8 mm (0.31 in). Net Weight 2.2 kg (4.7 lb). Shipping Box: (Single Carton Box) 227 x 224 x 113 mm; (8.9 x 8.8 x 4.4 in). Shipping Weight 3 kg (6.6 lb) . Nominal Impedance 4 Ohm. Minimum Impedance 3.6 Ohm. AES Power Handling (1) 130 W. Maximum Power Handling (2) 260 W. Sensitivity (1W/1m) 95 dB. Frequency Range 60hz-5000 Hz. Voice Coil Diameter 37 mm (1.46 in). Winding Material Al. Former Material Kapton. Winding Depth 11.9 mm (0.47 in). Magnetic Gap Depth 8 mm (0.31 in). Flux Density 1 T. Magnet Ferrite Ring. Basket Material Steel. Cone Surround (3) Triple Roll. NET Air Volume filled by Loudspeaker 0.6 dm-3 (0.021 ft-3). Spider Profile 1x constant height waves. THIELE AND SMALL PARAMETERS. Fs 80 Hz. Re 3 Ohm. Qes 0.47. Qms 8.7. Qts 0.45. Vas 15.8 dm-3 (0.56 ft-3). Sd 209 cm-2 (32.44 in-2). Xmax (4) 4.62 mm. Xdamage (5) 10.4 mm. Mms 15.3 g. Bl 7 N/A. Le 0.25 mH. Mmd 11.9 g. Cms 0.26 mm/N. Rms 0.9 kg/s. Eta Zero 1.67 %. EBP 170 Hz . PART NUMBER (P/N): Faston Terminals - 4 Ohm Version 02004056 NOTES:. (1) 2 Hours Test According to AES 2-1984 Rev. 2003. (2) Maximum power is defined as 3dB greater than nominal power.. (3) Treated Polycotton. (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3). (5) Maximum excursion before permanent damage
