The GL.iNet GL-XE300 (Puli) 4G LTE Mobile Smart VPN Router is an industrial-grade portable router designed for 4G LTE to Wi-Fi solutions. It features a Qualcomm QCA9531 chipset and an EC25-AF LTE module.
Key Features:
* 4G LTE to Wi-Fi Converter: Shares a 4G mobile broadband Internet connection from a micro SIM card, creating an up to 300Mbps Wi-Fi network (2.4GHz ONLY). Ensures constant data transmission by switching to 4G LTE if Ethernet fails.
* Open Source & Programmable: Pre-installed with OpenWrt, unlocked, and highly extendable for DIY projects. Includes 128MB RAM, 16MB NOR + 128MB NAND Flash, and supports up to 512MB MicroSD cards. Features dual Ethernet ports, a USB 2.0 port, and reserved Antenna SMA mount holes for further extension and file sharing.
* Security & Privacy: Comes with OpenVPN & WireGuard pre-installed, compatible with over 30 VPN service providers. Supports IPv6, WPA3, and Cloudfare for enhanced online security. Features an easy-to-use Web UI 3.0 for setting up VPN servers and clients.
* Larger Storage & Extendibility: Offers 128MB RAM and 16MB NOR + 128MB NAND Flash, expandable via external MicroSD slot and USB sticks. Equipped with two Ethernet ports, making it an ideal portable gateway for IoT development.
* Portable Travel Mate: Lightweight and portable, with a 5000mAh embedded lithium-polymer battery providing up to 8 hours of working duration. Designed for reliable internet access during travel. Working temperature: 0 - 40 degrees Celsius.
* Easy Configuration: Utilizes Web UI 3.0 and GoodCloud for remote device management and monitoring. Allows viewing real-time statistics, setting up VPN servers/clients, managing client connections, and remote SSH access to IoT devices. The built-in 4G modem supports AT commands, manual/automatic dial numbers, SMS checking, and signal strength checking.
* Supported Frequency Bands (EC25-AF module): FDD LTE: B2/B4/B5/B12/B13/B14/B66/B71; WCDMA: B2/B4/B5. For T-Mobile and North America only.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions

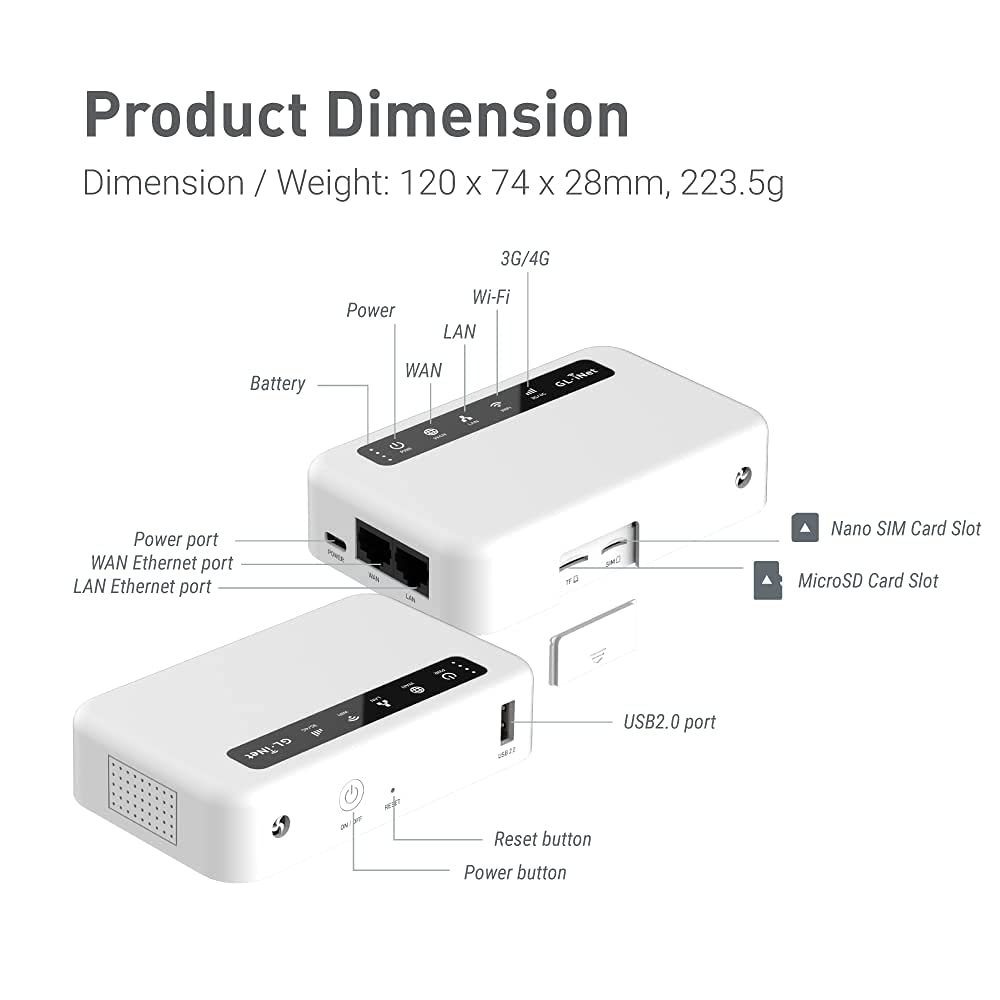

Q: What are the dimensions of the GL.iNet GL-XE300?A: The GL.iNet GL-XE300 measures four point seventy-two inches in length, two point ninety-one inches in width, and one point ten inches in height.
Q: What materials are used in the GL.iNet GL-XE300?A: The GL.iNet GL-XE300 features a durable casing designed for industrial use, although specific material types are not detailed.
Q: How much RAM and storage does the GL.iNet GL-XE300 have?A: The GL.iNet GL-XE300 is equipped with one hundred twenty-eight megabytes of RAM and a combination of sixteen megabytes of NOR flash plus one hundred twenty-eight megabytes of NAND flash.
Q: How do I set up the GL.iNet GL-XE300 for use?A: To set up the GL.iNet GL-XE300, insert a nano-SIM card, connect to power, and follow the instructions via the web interface for configuration.
Q: Can I use the GL.iNet GL-XE300 while traveling?A: Yes, the GL.iNet GL-XE300 is lightweight and portable, making it ideal for travel with its five thousand milliampere-hour battery providing up to eight hours of use.
Q: Is the GL.iNet GL-XE300 suitable for IoT applications?A: Yes, the GL.iNet GL-XE300 is specifically designed for IoT development, supporting various connectivity options and custom configurations.
Q: How do I maintain the GL.iNet GL-XE300's battery?A: To maintain the battery of the GL.iNet GL-XE300, avoid exposing it to extreme temperatures and charge it regularly to ensure optimal performance.
Q: What is the warranty on the GL.iNet GL-XE300?A: The GL.iNet GL-XE300 comes with a one-year warranty, covering manufacturing defects.
Q: Where can I find online documentation for the GL.iNet GL-XE300?A: Online documentation for the GL.iNet GL-XE300 is available at http://www.gl-inet.com/docs.
Q: Does the GL.iNet GL-XE300 support VPN connections?A: Yes, the GL.iNet GL-XE300 comes pre-installed with OpenVPN and WireGuard, compatible with over thirty VPN service providers.
Q: How many Ethernet ports does the GL.iNet GL-XE300 have?A: The GL.iNet GL-XE300 is equipped with two Ethernet ports for wired connections.
Q: What is the maximum supported storage for the GL.iNet GL-XE300?A: The GL.iNet GL-XE300 can support up to five hundred twelve megabytes of external storage via the MicroSD slot.
Q: Can I extend the functionality of the GL.iNet GL-XE300?A: Yes, the GL.iNet GL-XE300 runs OpenWRT, allowing for extensive customization and functionality extensions with additional software packages.
Q: What frequency bands does the GL.iNet GL-XE300 support?A: The GL.iNet GL-XE300 supports FDD LTE bands B2, B4, B5, B12, B13, B14, B66, and B71, along with WCDMA bands B2, B4, and B5.
Q: What should I do if my GL.iNet GL-XE300 arrives damaged?A: If your GL.iNet GL-XE300 arrives damaged, contact customer support immediately for assistance with returns or exchanges.
