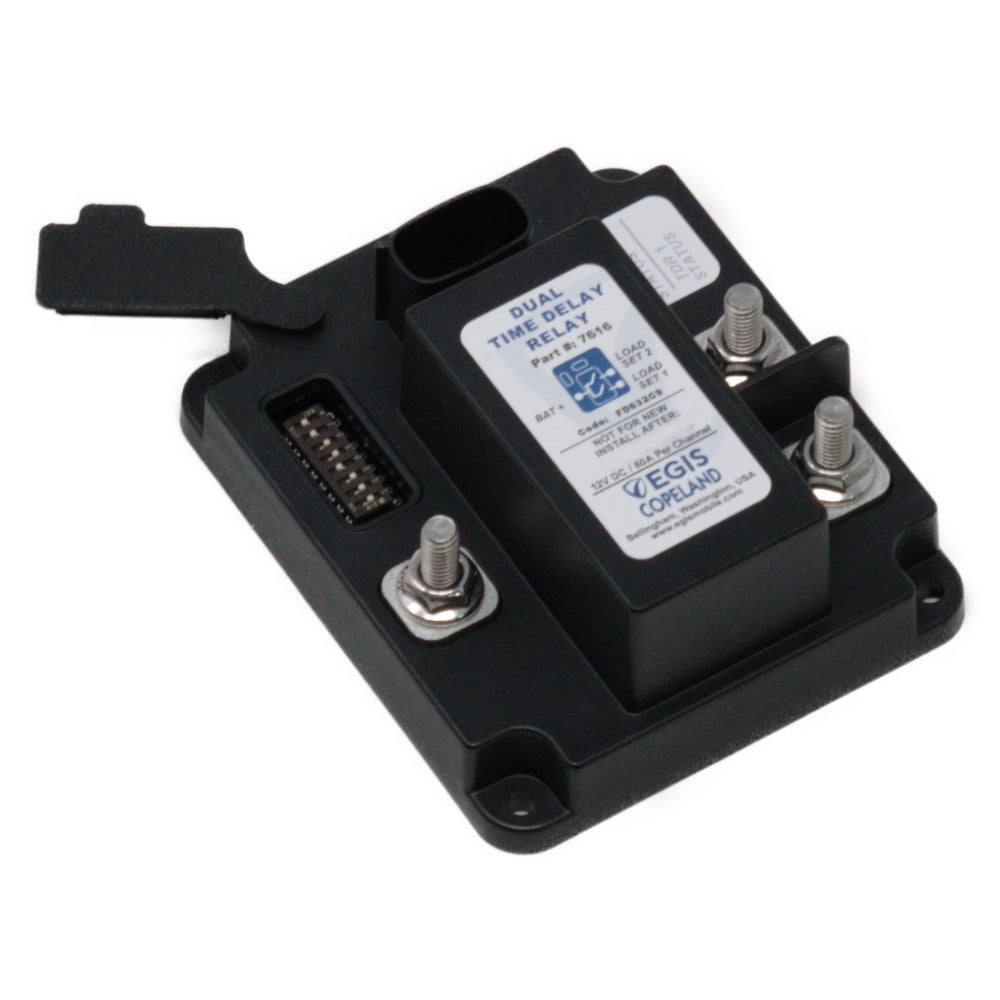

Egis Tdr Series Dual Output Time Delay Relay 12V (2 X 80A),WBAUVA001346917

Tdr Series Dual Output Time Delay Relay 12V (2 X 80A)This 12V Dual-Time Relay Can Prevent Dead Batteries Due To Added Equipment Loads On After-Engine Stops Or From Multiple Systems Connected To A Battery With An Independent Keep-Alive Power Draw, Maximizing Operational Readiness.Applications:Supports On-Board Video Systems When Vehicles Are Not In Use, Allowing Lengthy Downloading While Shutting Down Less Time-Sensitive Equipment. Sooner.Protects Sensitive Onboard Electronics Via Optional Under/Over Voltage Shutdown And Start Event Isolation.Features:Eliminates Vehicle Downtime Due To Dead Batteries; The Lowest Off-State Current Draw (1.3 Ma) Is Availablesimple And Robust Installation - Sealed Plug With Optional Long Wire Leads; Single Device Replaces Multiple Control Units And High-Amp Replays Reduce Installation Time, Costs, And Points Of Potential Failureadditional Low-Amp Output Can Be Used To Maintain 24-Hour Memory Circuits Or To Direct Other Equipment To Shut Downbullet-Proof Construction - Sealed Unit And High-Temperature Materials Allow Mounting Anywhere On The Vehicle; Integrated Thermal Overload Protection As Wellmeets Stringent Oem Standards For Electrical Transient Self-Protectionadjustable Off Time Delay - 0 Seconds To 4 Hourskill Switch Control Input Option For Ensuring Loads Are Not Inadvertently On, Maintenance/Servicing Of Vehicles, And Emergency Offflexible Control Options Via Ignition Key, Alternator Voltage Sense, Or Both4 Year Industry Leading Warrantyspecifications:Maximum Current: Continuous: 80 Amps Dc Per Output (160 A Total); Intermittent: 120 Amps Dc (5 Minutes) Per Outputoff-State Current Draw: 1.5 Ma (Less Than 1 Amp-Hr Battery Dissipation Per Month Of Stand-By)Operating Specifications: Voltage: 12 Vdc Nominal (8 - 18 Vdc); Temperature: -40 To 85 Degrees Ctime Delay Options: 5 Sec Through 4 Hours Via Dip Switchesenvironment Protection Standards: Waterproof To Ip66. Ip6K9K; Ignition Protected To Iso 8846Optional Features: Input Stud Voltage Sense Trigger For Relay Off; Under-Voltage And Over-Voltage Load Protectionfocal Features:Top Side Dip Switchesaccessible After Installation, For Programming Time Delay And Determining Active Features. Protected By Self-Retained Cover.Stainless Steel Self-Locking Hardware&Nbsp;100% Non-Ferrous Corrosion-Resistant Materials. All Attachment Screws And Nuts Are Self-Locking.Integral I/O Connector&Nbsp;Rapid And 100% Correct Assembly Via Molex Mx-150 Connector Eliminates Poor Field Connections.Standard And Optional Harnesses&Nbsp;The Mating Plugs With 2 Feet Of The Ground And Ignition Wire Included. Optional Harnesses With Additional Outputs And Alternate Wire Lengths Are Availableeasy Integration With Ct Fuse Blocks&Nbsp;Optional Easylink Bus Bars Reduce The Space And Cost Of Connecting Tdrs With Ct Series Fuse Blocks.Easy Integration With Rt Fuse Blocks&Nbsp;Optional Easylink Bus Bars Reduce The Space And Cost Of Connecting Tdrs With Rt Series Fuse Blocks.Led Diagnosticsindicates A Pending Relay Off Event Due To Under/Over Voltage Or External Off Trigger. Output On/Off Status Is Also Provided.
