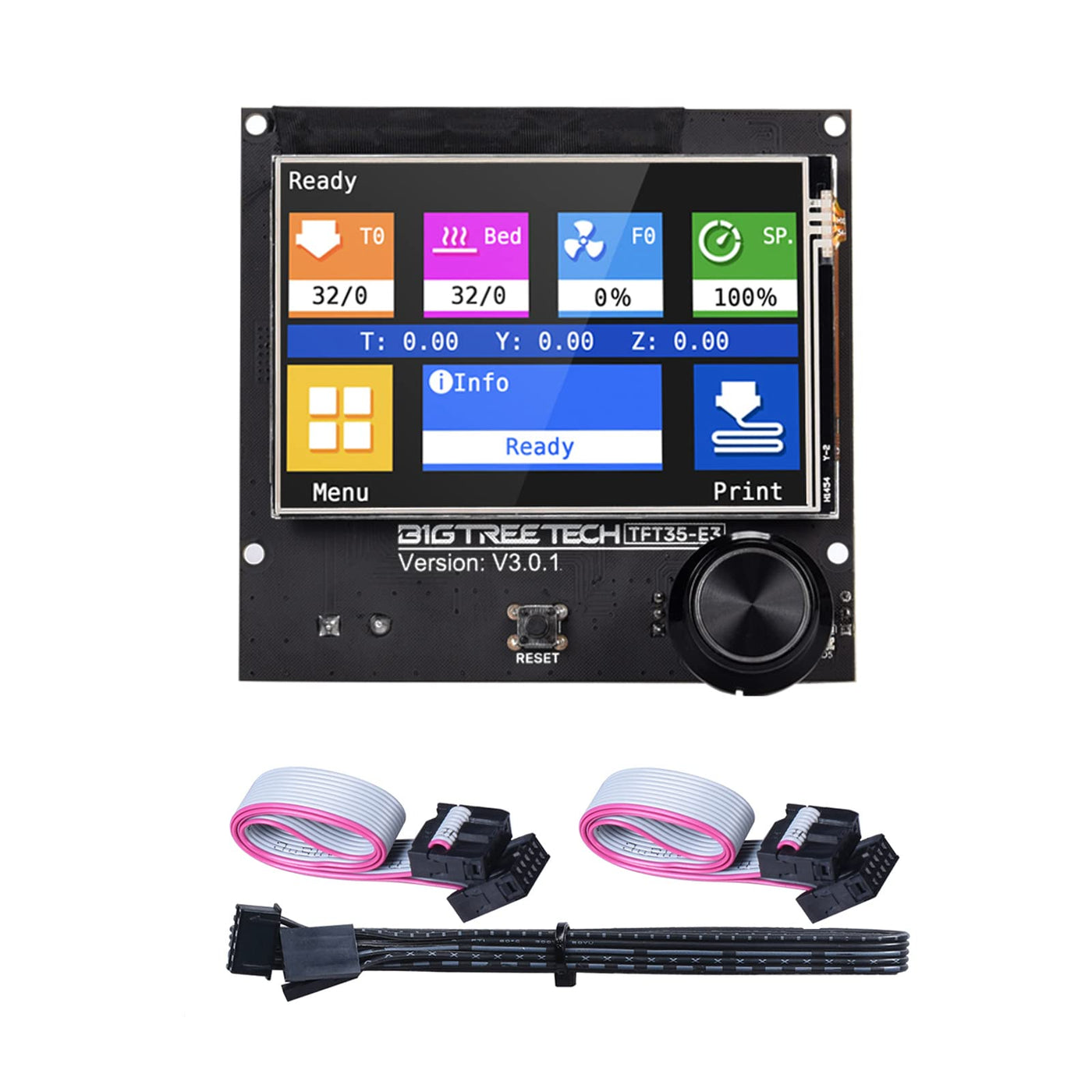

Bigtreetehch Tft35 E3 V3.0.1 Touch Screen Display With Two Working Modes Compatible 12864 Lcd Display Wifi For Ender 3 Cr 10 Skr
$49.37
Regular price
$70.53
-30%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

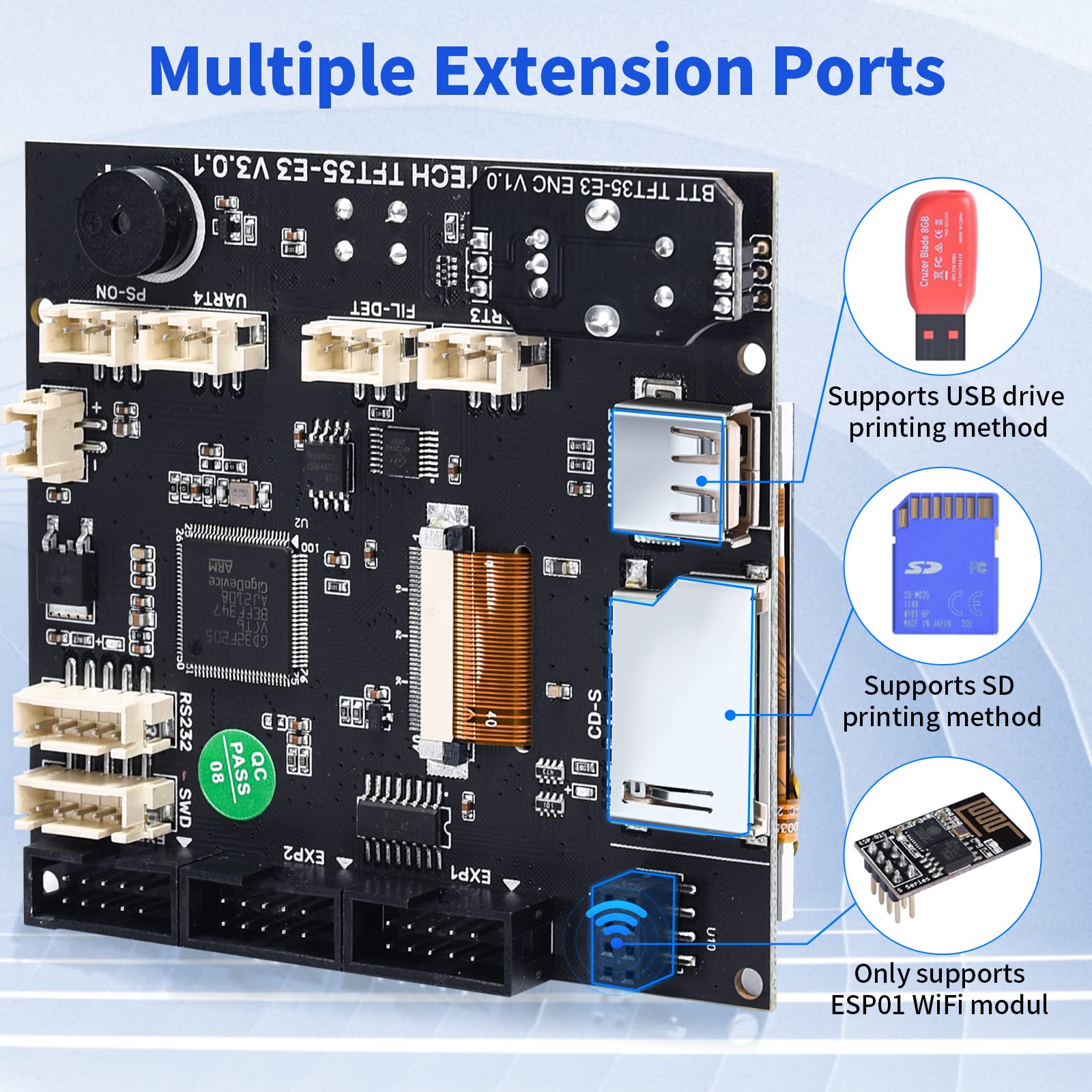

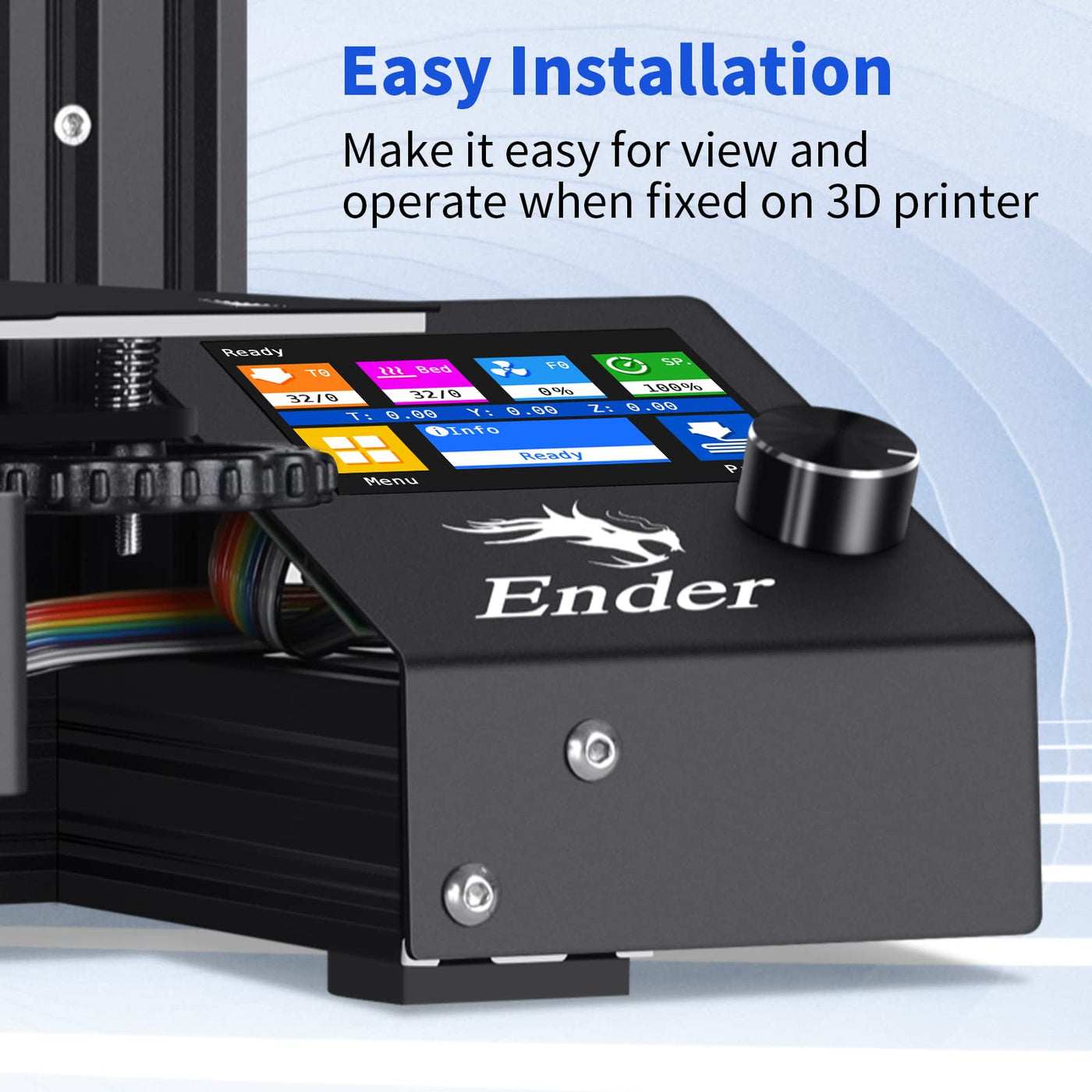

For More Details About Tft35 E3 V3.0.1 Display: Please Search Bigtreetech At Github. ?Bigtreetech Tft35-E3 V3.0 .1Is A Medium Size, Dual-Mode, Ultra-Clear 3D Printing Machine Display Launched By The 3D Printing Team Of Shenzhen Bigtree Technology Co., Ltd., Which Can Perfectly Replace The Original Lcd Screen Of Ender3 Printer. ?1.Product Characters : 1)Arm Cortex-M3 Series Stm32F207Vct6 Chip With 32-Bit Cpu 120Mhz; 2)Upgrade The Firmware By Sd Card. It Is Easy And Convenient To Operate. 3)This Display Board Has Higher Compatibility. Users Can Select Two Work Modes: Uart Serial Port Screen Mode And 12864 Screen Mode. 4)Serial Port Screen Mode Supports Two Printing Modes: Sd Card And U Disk. 5)Reserve Wifi Port, And Wifi Function Is Realized By External Wifi Module; 6)Lcd12864 Mode Uses Exp1, Exp2 And Exp3. Exp1 And Exp2 Are Lcd Screen Ports Of Normal Motherboard. Exp3 Is The Lcd Interface Used By E3 Series Motherboard (Such As Skr Mini E3 V1.2, Skr E3 Dip V1.1, Etc.) ; 7)Tft Touch Screen Mode:Serial Port Screen Rs232 Port; 8)2 Sets Of Uart Serial Port Extension Ports Are Reserved For Diy Use. ?2.Product Parameters : Appearance Size:93*87Mm Installation Size:Perfectly Replace The Original Lcd Screen Of Ender3 Printer, Detail Information Please Check Tft35-E3 V3.0.1 Size Microprocessor:Stm32F207Vct6 Power Input:Dc 5V Sd Card Logic Voltage:3.3V And 5V(Such As: Support Mega2560 Main Control Chip Motherboard, Higher Compatibility) Notes: 1. When Using 12864 Screen Mode, Connect The Port Exp1 And Exp2 To The Motherboard. There Is No Touch Function In This Mode. 2. When Using Serial Port Screen Mode, Connect With Tft Or Aux-1 On The Motherboard Via Rs232. This Mode Has Touch Function; 3. Two Work Modes Can Be Changed By One Key. Press The Encoder About 3Seconds Until The Mode Selection Page Appears, Then Press The Encoder After Selecting The Mode.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Related products
Frequently Asked Questions

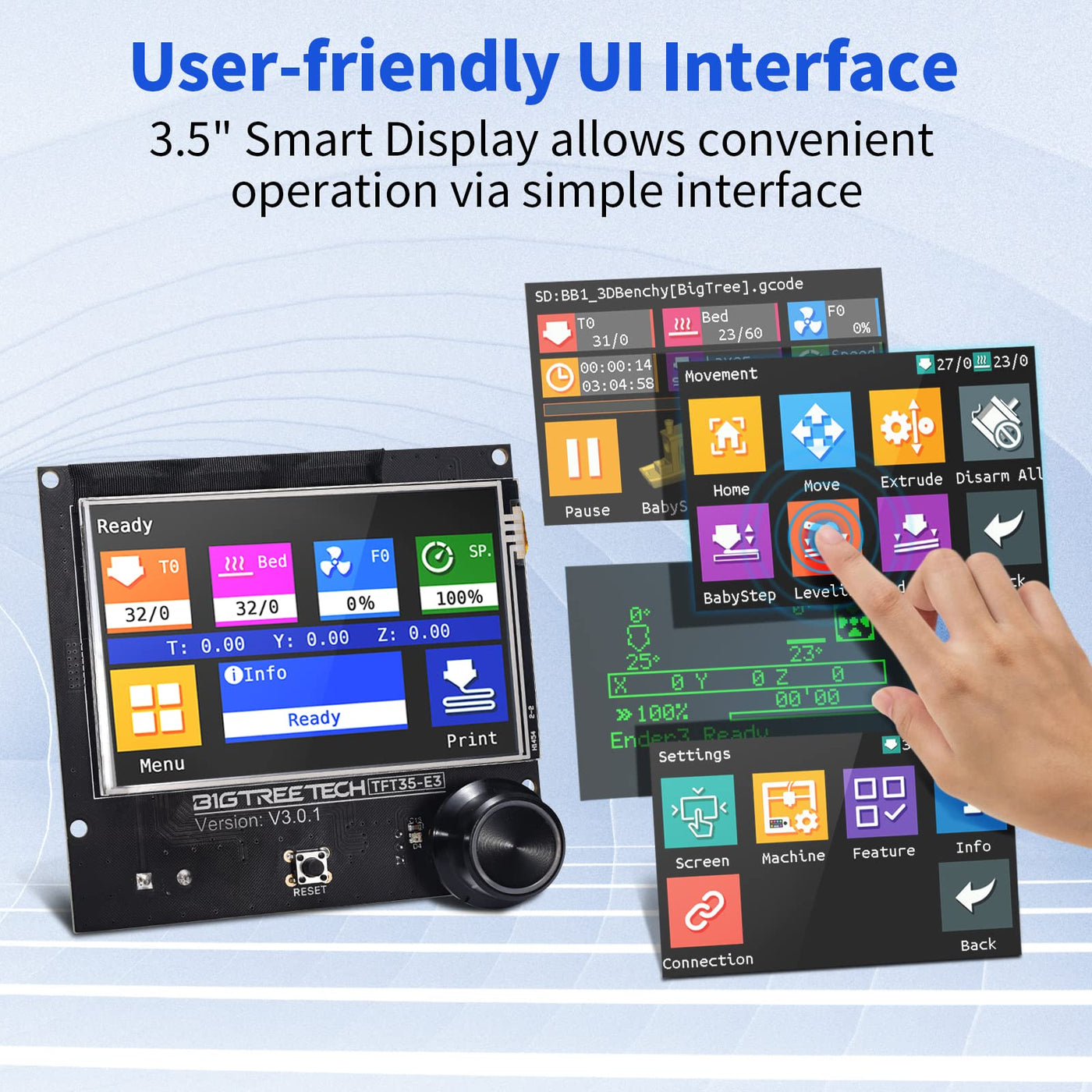

Q: What are the main features of the BIGTREETECH TFT35 E3 V3.0.1 Touch Screen Display?A: The BIGTREETECH TFT35 E3 V3.0.1 features a dual-mode 3D printing display, an ARM Cortex-M3 series STM32F207VCT6 chip, firmware upgrade via SD card, compatibility with UART serial port and 12864 screen modes, and support for SD card and USB printing. It also includes a WiFi port for external module integration and a touch screen interface.
Q: Is the TFT35 E3 V3.0.1 compatible with different 3D printers?A: Yes, the BIGTREETECH TFT35 E3 V3.0.1 is widely compatible with various 3D printers, particularly the Ender series. It can also be used with other models such as SKR MINI E3 V3.0, SKR V1.4 Turbo, and Octopus, as long as you adapt your enclosure for the display.

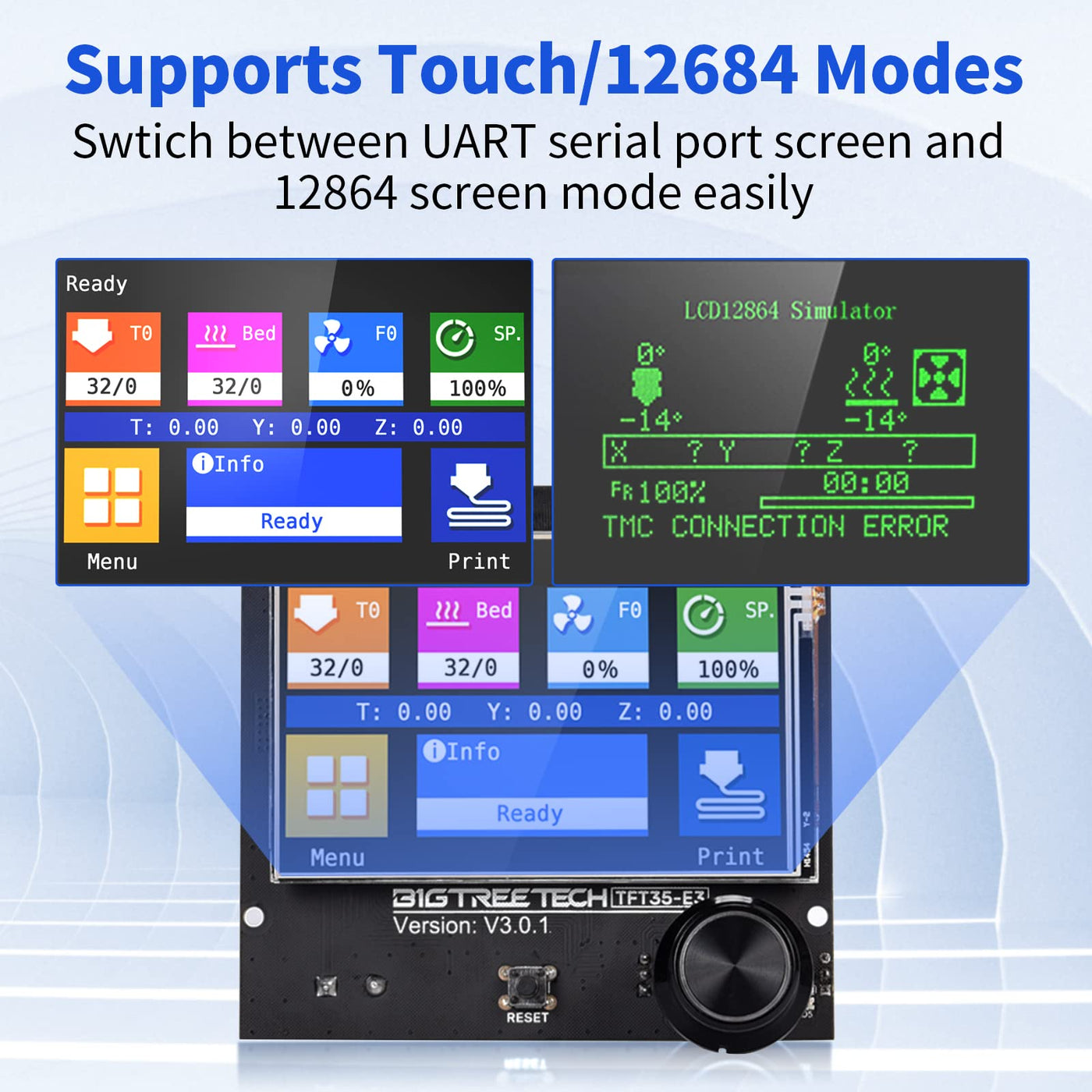

Q: How do I switch between the different working modes of the TFT35 E3 V3.0.1?A: To switch between the UART serial port screen mode and the 12864 screen mode on the TFT35 E3 V3.0.1, press the encoder for about 3 seconds until the mode selection page appears, then select your desired mode by pressing the encoder again.
Q: What should I do if I encounter issues with the BIGTREETECH TFT35 E3 V3.0.1?A: If you experience any issues with the BIGTREETECH TFT35 E3 V3.0.1 touch screen display, you can reach out to the technical support team via Amazon. They will assist you in troubleshooting and resolving any problems.
Q: Can I use the TFT35 E3 V3.0.1 in Klipper mode?A: When using Klipper firmware, the BIGTREETECH TFT35 E3 V3.0.1 only supports the 12864 mode. If you prefer a touchscreen interface while using Klipper, consider selecting the HDMI5 V1.2 Klipper touchscreen.
